Name: Grid Machine
Brand: Guangzhou Jovia Environmental Technology Co., Ltd.

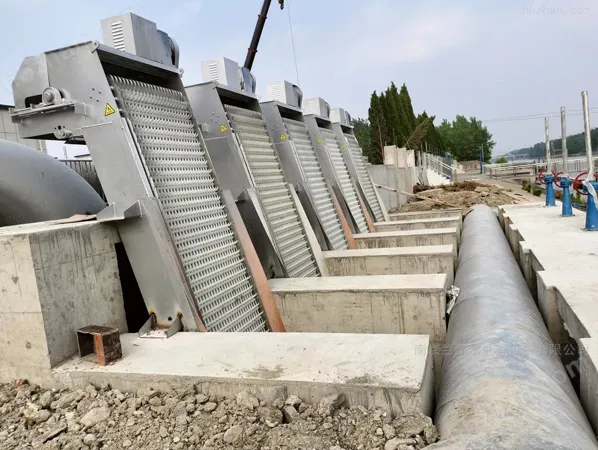

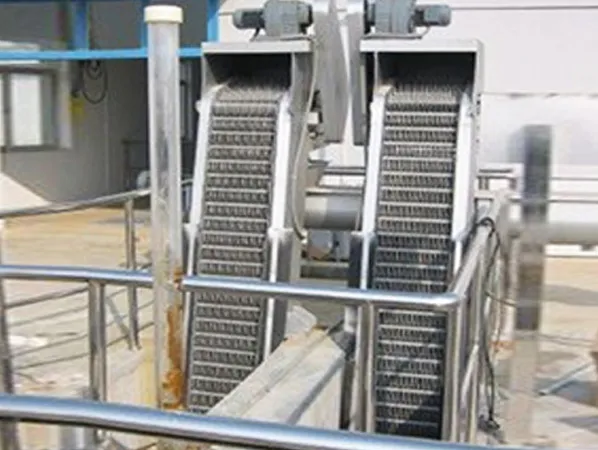

Grid Machine

The rotary rake grid machine is a special water treatment equipment that can continuously and automatically intercept and remove various-shaped debris in the fluid. It can be widely used in urban sewage treatment, the water supply industry, and the water inlet of power plants. At the same time, it can also be used as the pre-screening equipment in the wastewater treatment process of industries such as textiles, food processing, papermaking, and leather. It is one of the current advanced solid-liquid screening equipment.

The greatest advantages of this equipment are its high degree of automation, high separation efficiency, low power consumption, no noise, and good corrosion resistance.

Due to the reasonable structural design of the equipment, when the equipment is working, it has a strong self-cleaning ablity and no clogging occurs, so the daily maintenance workload is very small.

Specification of Grid Machine

Parameters/Model	GX - 300 - GX - 3600
Installation angle α	60° - 80°
Electric motor power (kw)	0.75 - 3
Rake tooth movement speed (m/min)	1.8
Equipment width Wo (mm)	300 - 3600
Ho (mm) Equipment height installation Ho (mm)	H + H1 + 800
Ditch width W (mm)	=W0+100
Ditch depth H (mm)	User defined
Length of diversion groove L (mm)	1500 + H×cot α
Maximum temperature of the medium (°C)	≤80°C
Height H1 (mm) from foot to discharge opening	400 - 1000 (User defined)

Features of Grid Machine

01

Simple Structure: Adopts a rotary rake tooth structure with a concise design, enabling easy installation and maintenance.
02

Excellent Separation Effect: The rotation and movement of the rake teeth can effectively intercept and discharge solid particles in sewage, protecting the normal operation of subsequent treatment equipment.
03

High Durability: Manufactured with high-strength materials, it has good performance in wear resistance, corrosion resistance, and impact resistance, ensuring long-term stable operation of the equipment.
04

High Degree of Automation: It can realize automatic operation, reduce manual intervention, and improve treatment efficiency. Meanwhile, the equipment is equipped with an overload safety protection device, which will automatically shut down when the equipment malfunctions to prevent the equipment from working under overload.
05

Strong Self-Cleaning Ability: The equipment has a reasonable structural design and strong self-cleaning ability, which is not prone to clogging and requires less daily maintenance work.

Get in Touch with JOVIA for Environmental Engineering Solution



Contact With Us:

E-mail: sales@joviatech.com
Have a Questions? Call Us:

+86-15626012022


Add:

A2027, Room 201, No. 2, Yingcai Street, Tianhe District, 510630, Guangzhou

JOVIA will meet your needs as much as possible.

Don't hesitate to contact us now.

Related Wastewater Treatment Equipment

Flotation Machine

Filter Press

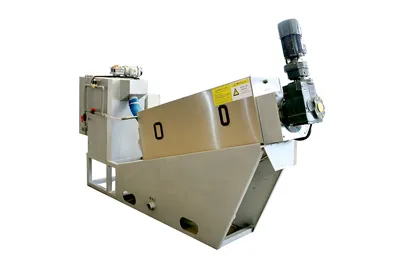

Sludge Dehydrator
