Name: GRP Sectional Tanks
Brand: Guangzhou Jovia Environmental Technology Co., Ltd.

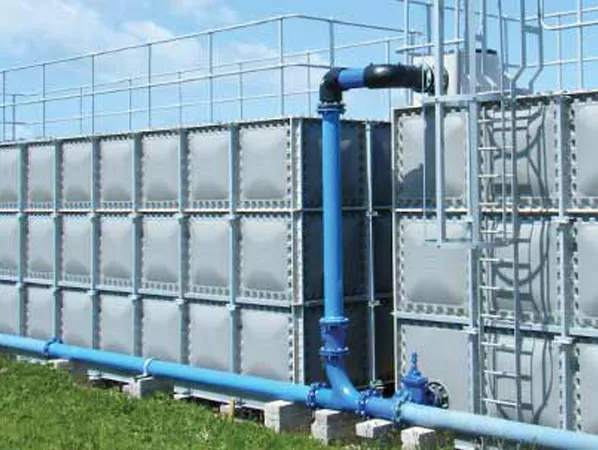

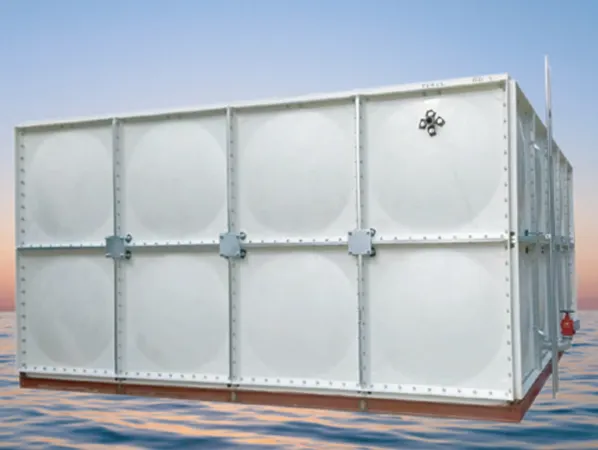

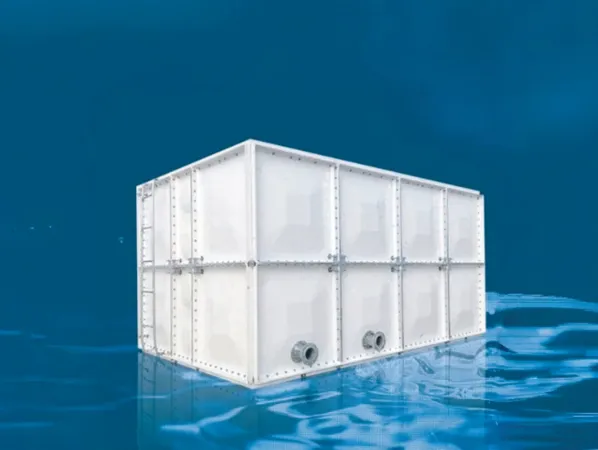

GRP Sectional Tanks

GRP sectional tanks can be pre-insulated, ranging from 1m³-10,000m³ capacity and erected to a height of 4m in 1m and 0.5m increments.

Assembled by the high quality SMC plate with food-grade resin, which is characterized by excellent water quality, high strength, light weight, corrosion resistance, beautiful appearance, long service life, convenient maintenance.

Specification of Grp Sectional Tanks

Physical Properties	Standard requirement	Result
Tensile strength	≥60 MPa	67 MPa
Bending strength	≥120 MPa	186 MPa
Bending modulus	≥10 GPa	12 GPa
Pap hardness	≥60HBa	64 HBa
Bibulous rate	≤0.5%	0.11%
Glassfiber content	≥25%	28%

TECHNICAL DATA

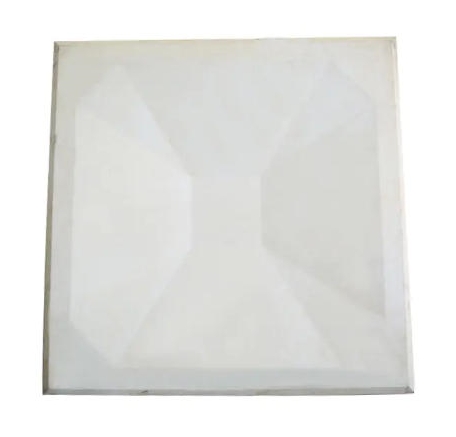

PANELS

•MATERIAL

1.Food grade unsaturated polyester resin

2.Alkali free twist glass fiber roving

3.Thickener (MgO), initiator (curing agent), cross linking agent, etc.

•SIZE & WEIGHT

1.The size of FRP/GRP panel are produced by standard mold, having size 1*1m, 1*0.5m and 0.5*0.5m;

2.The panel thickness is depends on tank height;

3.The available highest height is 5 meters (Add external C channel or Ibeam reinforcement for 4m and 5m height).

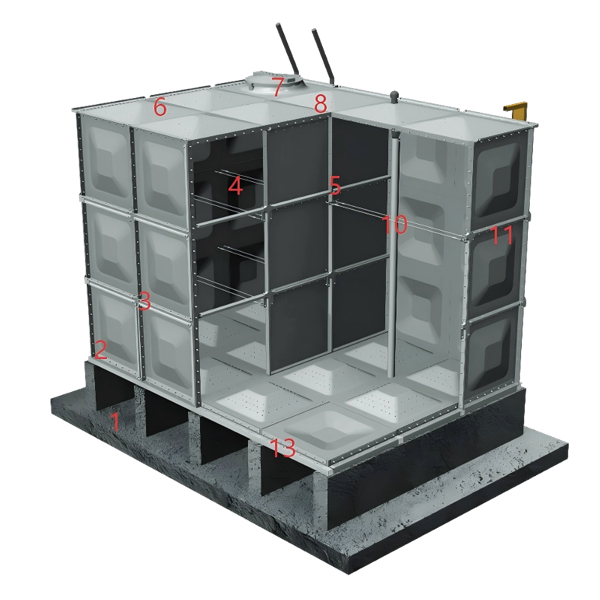

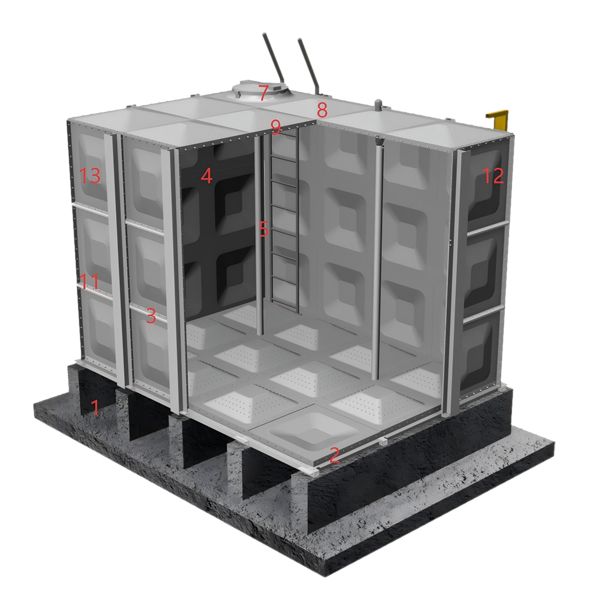

Internally Reinforced System Accessories

1.Concrete beam

2. C-channel base

3. Outer tie rod plate

4. Inner tie rod plate

5. Vertical support

6. Top angle bar

7. Manhole

8. External ladder

9. Inlet flange

10. Horizontal tie rod

11. Side angle bar

12. Outlet flange

13. Sealing rubber

Externally Reinforced System Accessories

1. Concrete beam

2. C-channel base

3. Outer tie rod plate

4. Inner tie rod plate

5. Vertical support

6. Horizontal tie rod

7. Manhole

8. External ladder

9. Sealing tape

10. Auxiliary band iron

11.Auxiliary angle iron

12. Water indicator

13. Corner angle bar

•BOLTS & NUTS

1.Hot dipped galvanized

2.Stainless steel 304/316

•INTERNAL STRUCTURE

1.Hot dipped galvanized

2.Stainless steel 304/316

•SEALING RUBBER

1.Food grade white color EPDM

2.Silicone

•SKID BASE

1.Painting

2.Hot dipped galvanized

•FLANGES

1.Hot dipped galvanized

2.Stainless steel 304/316

3.PVC

•WATER INDICATOR

1. Glass with brass valve

2.Float type

ADVANTAGES

•COST-EFFECTIVE

FRP/GRP is a kind of high-technological reinforced plastic. It has low cost and high performance, is a perfect substitute of metal tank.

•RELIABLE QUALITY

Our FRP/GRP tanks use only internationally renowned raw materials with a service life of more than 25 years.

•DIMENSION FLEXIBILITY

0ne size of panel can be 1*1 m, 1*0.5 and 0.5*0.5m，which can assembled kinds of volume from 0.125m³ to 5000m³. That's extremely convenient to select for you.

•CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.

•POTABILITY

FRP/GRP material has passed local Water Quality Inspection testing. Test result shows our FRP/GRP are suitable for potable water reserve.

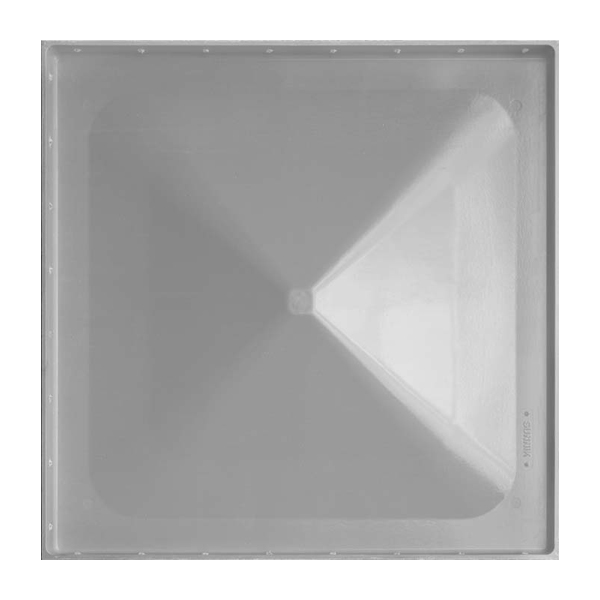

Roof panel adopt upward bulge to prevent rainwater remain on the top. Further prevent mosquito breeding and dirty water permeate inside the tank.

Features of Grp Sectional Tanks

01

Designed to BS EN 13280 (2001)
02

Consistent product offering dimensional stability Provides high levels of accuracy
03

Improved resistance to bacterial growth, increased water resistance, reduced risk of osmotic attack. Colour RAL 7004
04

Suitable for global climatic conditions Prevents algae growth
05

Low maintenance, resists wind and snow loadings. BS 6399 Pt1 (1996)
06

Provides U value of 0.6W/m2K. CFC and HCFC free. Suitable for water storage up to 38ºC (Non‐standard ‐ price on application)
07

WRAS approved, provides optimum performance under varying climatic conditions Designed to BS 6700:1997 to limit structure deformation
08

Certified to BS EN ISO 9001:2015
09

COST-EFFECTIVE
10

RELIABLE QUALITY
11

DIMENSION FLEXIBILITY
12

CONVENIENT INSTALLATION
13

POTABILITY

Get in Touch with JOVIA for Environmental Engineering Solution



Contact With Us:

E-mail: sales@joviatech.com
Have a Questions? Call Us:

+86-15626012022


Add:

A2027, Room 201, No. 2, Yingcai Street, Tianhe District, 510630, Guangzhou

JOVIA will meet your needs as much as possible.

Don't hesitate to contact us now.

Related Storage Tanks

Epoxy Coated Steel Tanks

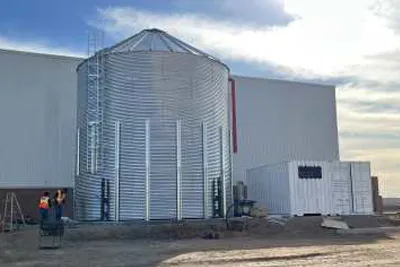

Corrugated Steel Water Tank
