Name: Epoxy Coated Steel Tanks
Brand: Guangzhou Jovia Environmental Technology Co., Ltd.

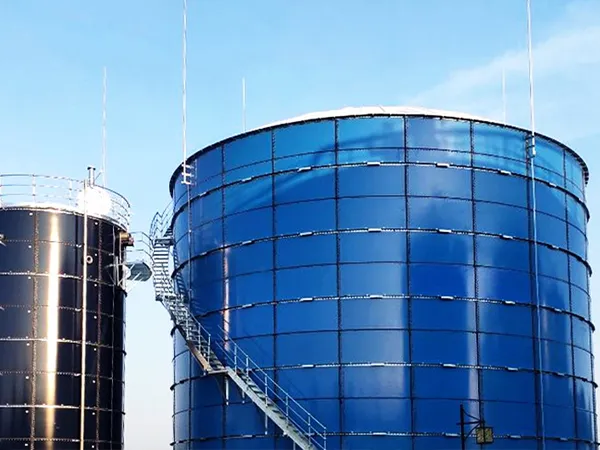

Epoxy Coated Steel Tanks

Fusion Bonded Epoxy (FBE) is an electrostatically applied coating system with superior coverage and uniform coating thickness. AkzoNobel high-tech RESICOAT R4-ES used on the internal surface combined with the ultra durable INTERPON D2525 on the external surface ensures high performance corrosion resistance for storage tanks and silos. The internal coating RESICOAT R4-ES is NSF/ANSI 61 certified for drinking water contact, and the internal contact surface of every panels are zero defects tested at 1100v before delivering to the clients.

Specification of Epoxy Coated Steel Tanks

Internal coating - Thermoset resin fusion bonded epoxy

Application	Test	Result
Dry Film Thickness	Non-Destructive Test	FBE-V900: Minimum 5 mils / 130 microns FBE-V100: Minimum 8 mils / 200 microns FBE-V1500: Minimum 12 mils / 300 microns


Hot Water Immersion, 70℃	GB/T1733	Meets or exceeds industry norms
Adhesion	GB/T5210	≥12 / 16 / 16 MPa
Corrosion Resistance	Salty Spray GB/T 1771	2mm creep from scribe at 1000 Hrs / 2000 Hrs / 4000 Hrs
Impact Resistance	GB/T 20624.2	≥18J
PH Range	-	3-13
Abrasion Resistance	Abrasion wheel GB/T1768	CS-17, 1000 cycles<40mg
Hardness	GB/T 6739	2H
Chemical Immersion	50% NaOH, 50% H₂SO₄	Meets or exceeds industry norms
Holiday Test	900v/1100v/1500v every panel	Discontinuity free (Zero defects at test voltage)

External Coating - Ultra durable polyester

Application	Test	Result
Dry Film Thickness	Non-Destructive Test	Minimum 3 mils / 80 microns
Weathering Resistance	GB/T1865	1000 Hrs no change
Adhesion	GB/T5210	≥12 / 16 / 16 MPa

Features of Epoxy Coated Steel Tanks

01

Coating Colors: RAL 5013 Cobalt Blue; RAL 5015 Sky Blue; RAL 9016 Traffic White
02

Coating Thickness: Epoxy tanks can be specified with coating thicknesses of approximately 80~450μm according to the required coating system.
03

Acid and Alkali Resistance: Suitable for use with a pH value of 3~11, making these epoxy coated steel tanks suitable for demanding industrial liquid storage applications.
04

Elasticity: Approximately 500KN/mm
05

Hardness: 2.5 (measured with a Mohs Hardness Tester)
