Name: Mixers and Agitators
Brand: Guangzhou Jovia Environmental Technology Co., Ltd.

Mixers and Agitators

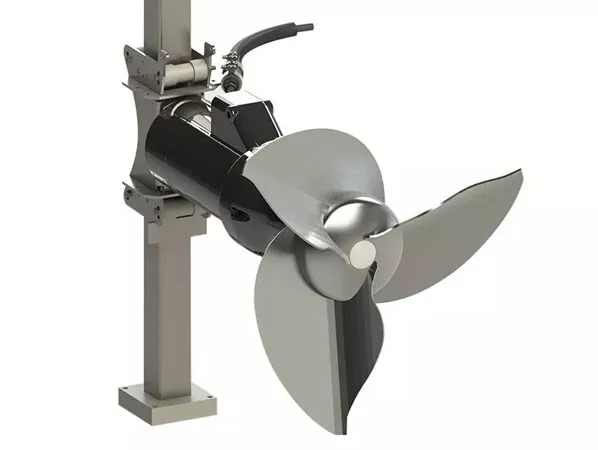

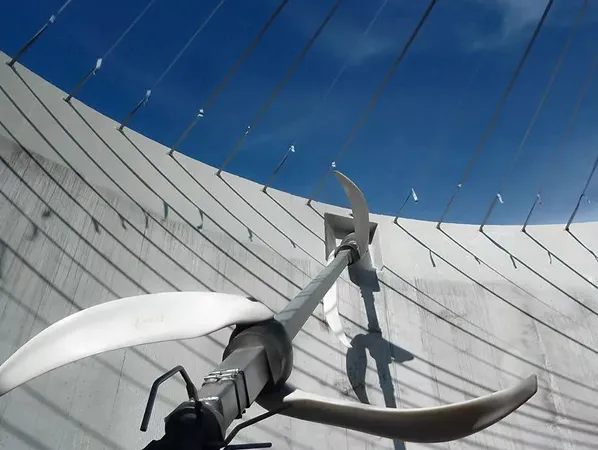

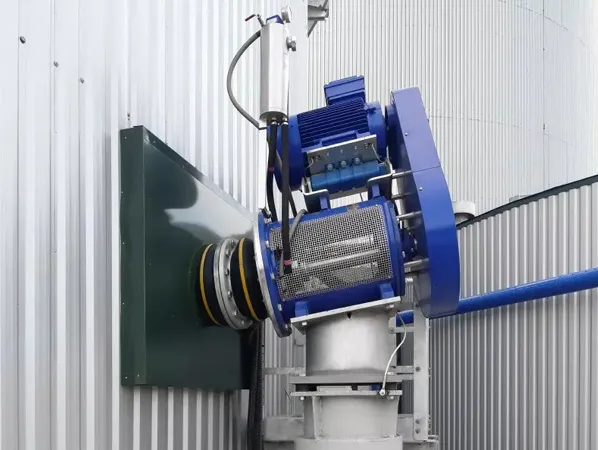

The mixers and agitators are used in biogas reactors, fermenters, post-digesters, preliminary tanks and filtrate tanks for mixing vegetable and animal waste substrates and filtrate. Depending on the installation method and the tasks set, they are divided into the following types: central, vertical, submersible, inclined and side mixers.

Specification of Mixers and Agitators

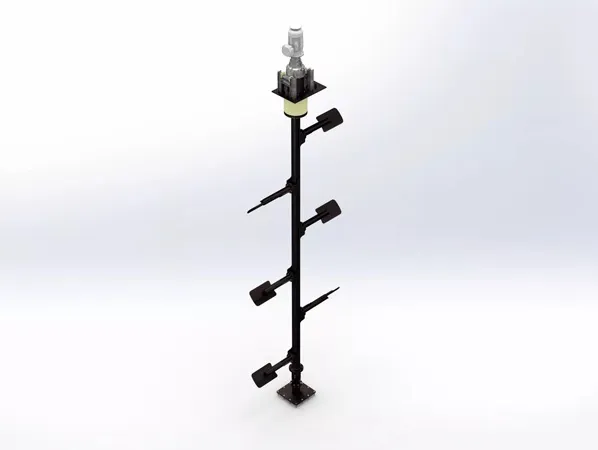

Vertical paddle agitator 15kW
Drive	15 kW
Speed	8 rpm at 50Hz / 14 rpm at 87Hz
Torque	20,000 Nm (normal operation)
Installation height	7000 mm (can be changed unto 12 m per your requirement)
Diameter	2800 mm
Weight	2000 kg
Number of paddles	4 (can be more)

Features of Mixers and Agitators

01

Robust and heavy-duty mixer
02

Operation non-stop
03

Dry matter inside of the digester upto 18%
04

Especially suit for maize silage, Napier grass and straw in high-load biogas reactors
