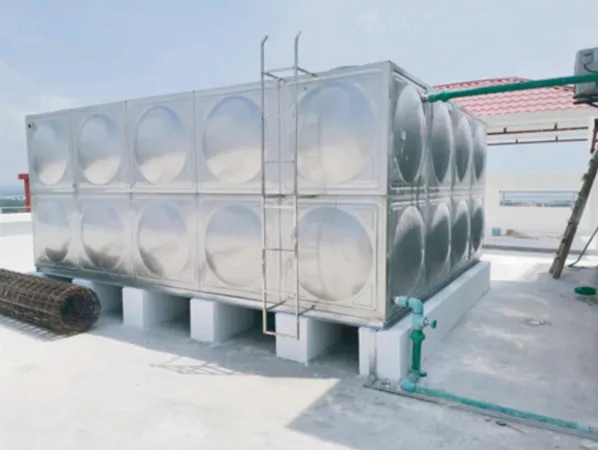

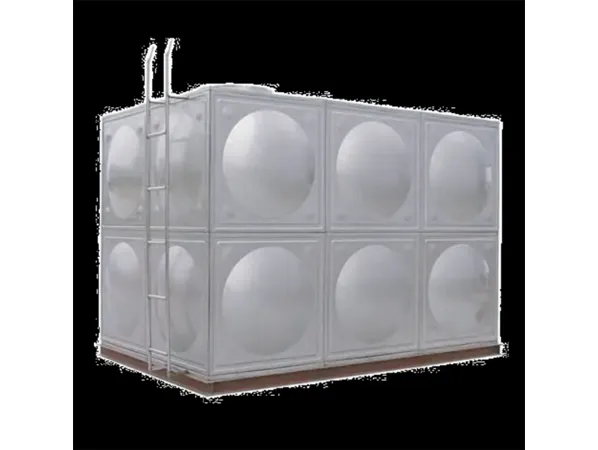

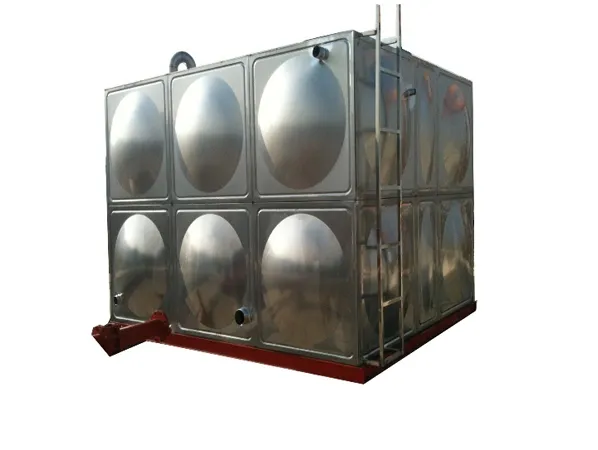

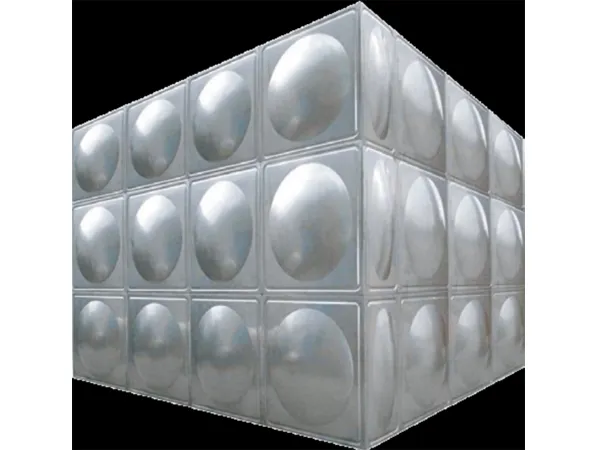

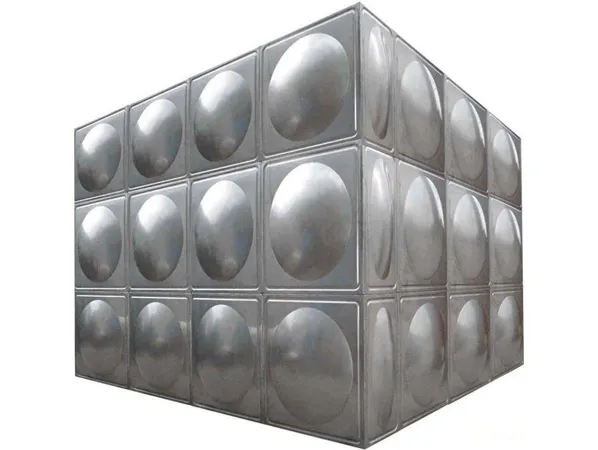

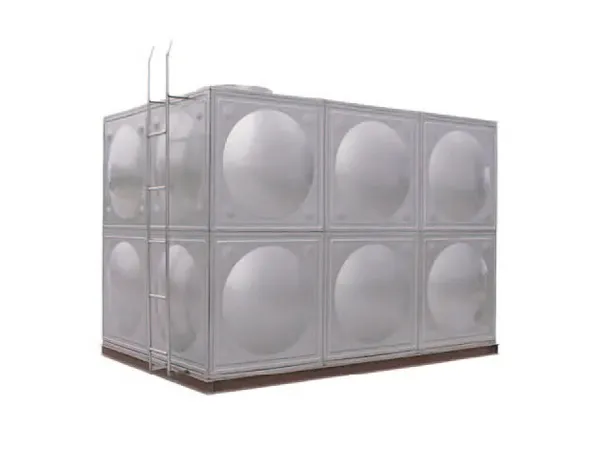

Name: Stainless Steel Water Tanks
Brand: Guangzhou Jovia Environmental Technology Co., Ltd.

Specification of Stainless Steel Water Tanks

Physical properties	Standard requirement	Result
Tensile strength	≥515 MPa	695 MPa
Yield strength	≥205 MPa	309 MPa
Elongation	≥40 %	54%
Hardness	≤92HRBS	85HRBS

TECHNICAL DATA(WELDING TYPE)

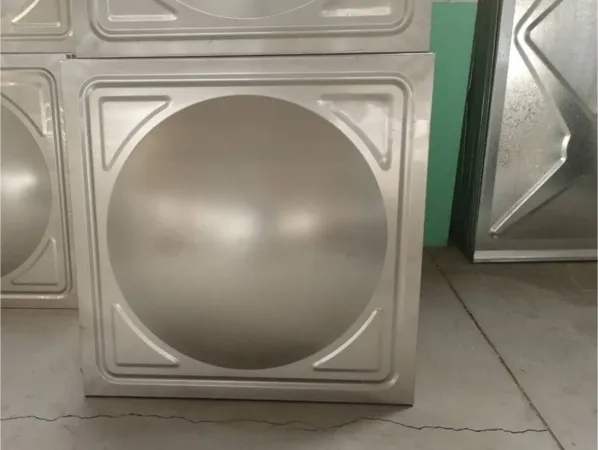

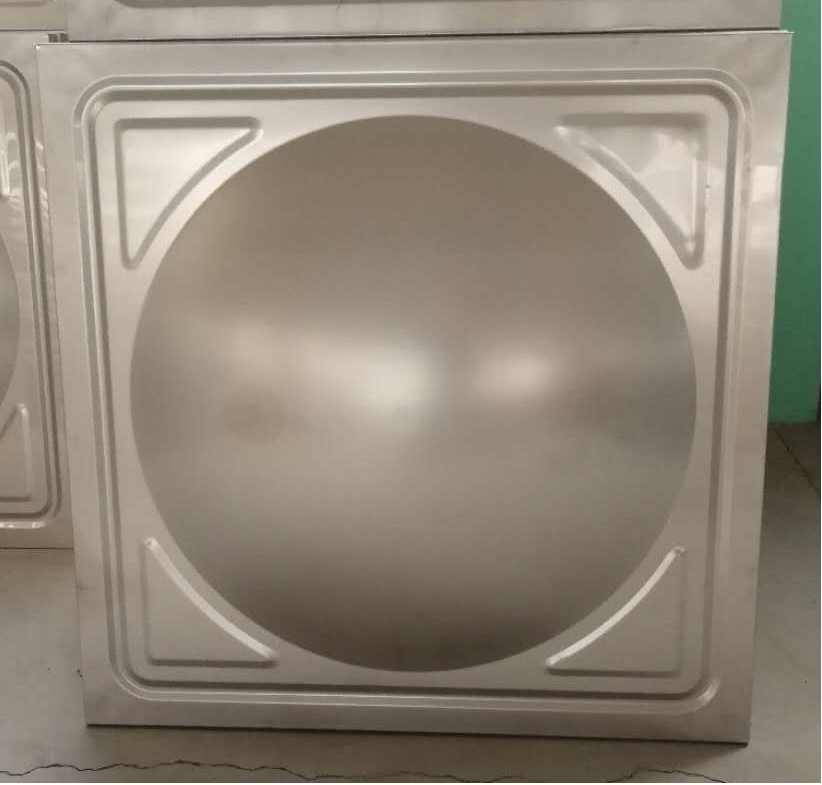

PANELS

•SURFACE DESIGN

Rounded shape

•MATERIAL

1.Food grade SS304/2B

2.Food grade SS316L

•SIZE

1.The size of stainless steel panels are produced by standard with 1*1m, 1*0.5m and 0.5*0.5m;

2.The panel thickness is depends on tank height;

3.The maximum height available is 6.5 meters (Need add C-channel external reinforcement if over 5.5m height).

TECHNICAL DATA(BOLTED TYPE)

PANELS

•SURFACE DESIGN

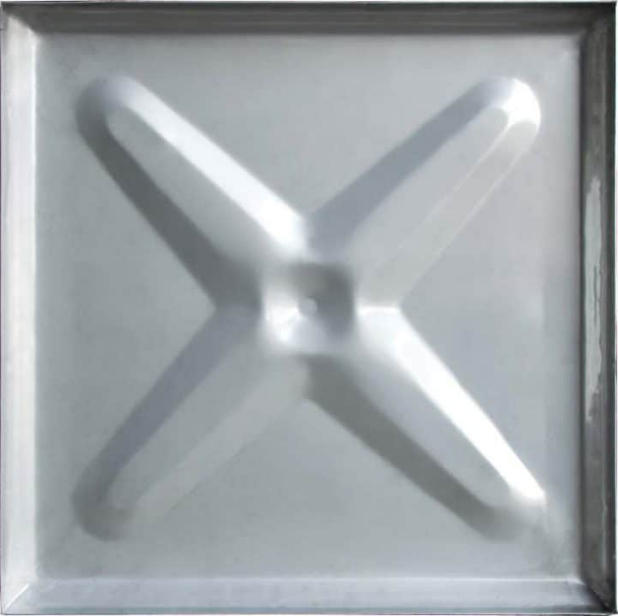

"X" shape

•MATERIAL

1.Food grade SS304/2B

2.Food grade SS316L

•SIZE

1.The size of stainless steel panel are produced by standard with 1.22*1.22m 1*1m, 1*0.5m and 0.5*0.5m;

2.The panel thickness is depends on tank height;

3.The maximum height available is 5 meters (Need add I-beam external reinforcement if 5m height).

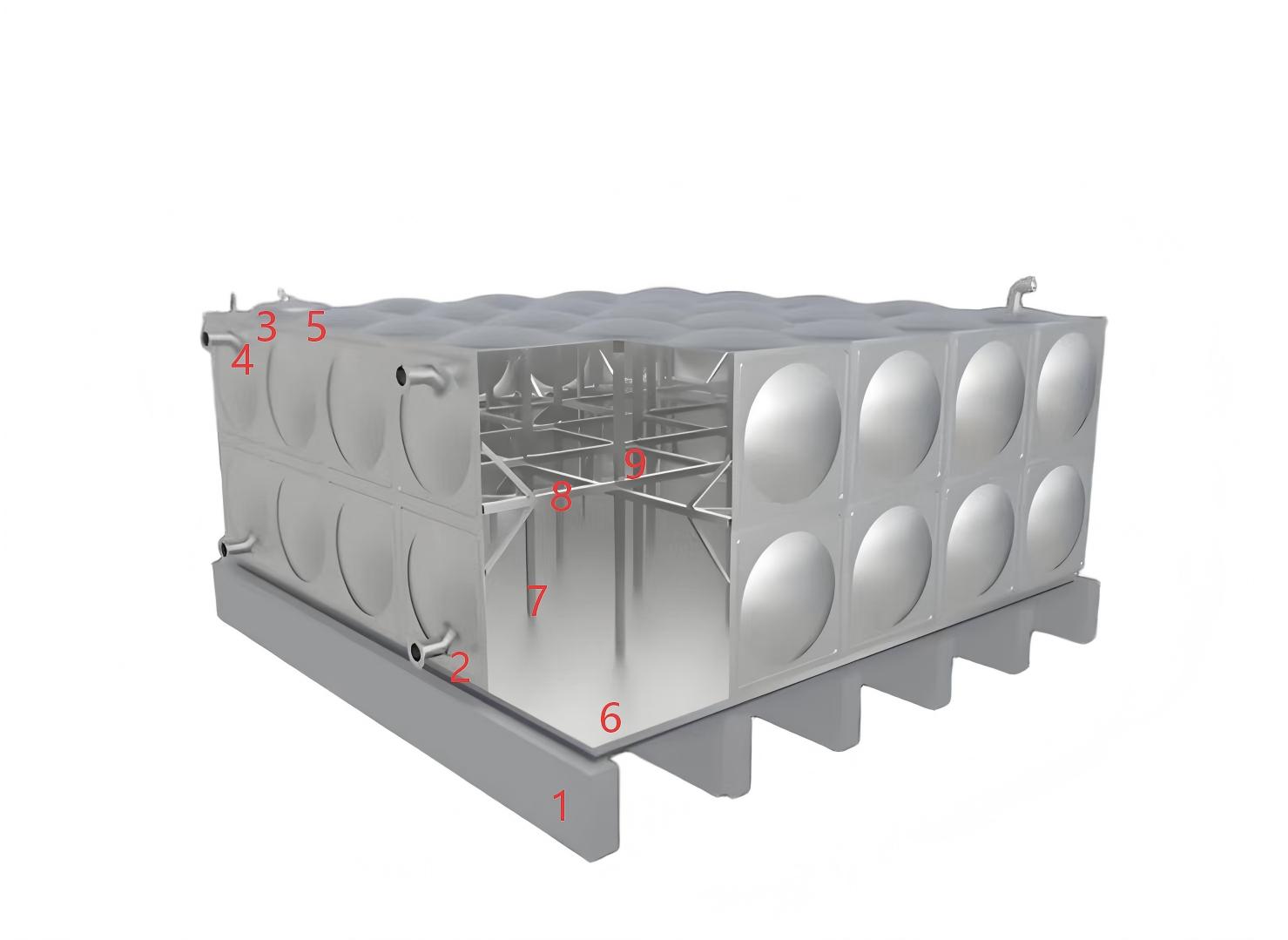

ACCESSORIES

1. Concrete beam 2. Outlet flange 3. External ladder 4. Inlet flange 5. Manhole 6. C-channel 7. Oblique short bar 8. Horizontal tie rod 9. Vertical support

•INTERNAL STRUCTURE SS304/2B or SS316

•BASE FRAME

1.Painting

2.Hot dipped galvanized

•LADDER

SS304/2B or SS316

•FLANGES

SS304/2B or SS316

ADVANTAGES

•ANTI-CORROSION

The raw material adopt pure stainless steel 304 or 316; it has excellent corrosion resistance.

•POTABILITY

The stainless steel material can be implanted into the human body, it is very best healthy material for us.

•RELIABLE QUALITY

Our raw material are all international famous brand. Tank life-span can be over 25 years.

•DIMENSION FLEXIBILITY

The size of panel can be 1.22*1.22m, 1*1 m, 1*0.5m and 0.5*0.5m, which can assembled kinds of volume from 0.125m³ to 5000m³. That's extremely convenient to select for you.

•CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.

•SAVE SPACE

For argon arc welding type, all the welding process are handle from inside the tank, so there's no need left space around of tank.

Features of Stainless Steel Water Tanks

01

ANTI-CORROSION
02

POTABILITY
03

RELIABLE QUALITY
04

DIMENSION FLEXIBILITY
05

SAVE SPACE
