Name: Hot-Dip Galvanized Water Tanks
Brand: Guangzhou Jovia Environmental Technology Co., Ltd.

Hot-Dip Galvanized Water Tanks

Jovia hot-dip galvanized water tanks feature bolted assembly without on-site welding, excellent corrosion resistance and high cost-effectiveness, ideal for fire protection and industrial water storage.

Hot-dip galvanized steel panels provide excellent corrosion resistance and structural durability, making this solution suitable for projects requiring reliable galvanized steel water tank systems for fire protection, industrial and municipal applications.

Specification of Hot-Dip Galvanized Water Tanks

Physical properties	Standard requirement	Result
Tensile strength	≥350 MPa	509 MPa
Yield strength	≥220 MPa	414 MPa
Elongation	≥23 %	24%

TECHNICAL DATA

PANELS

•MATERIAL

1.Q235B raw material complying China GB/T 700-2006 standard;

2. Surface zinc layer 70µm thickness complying GB/T19001-2008 standard;

3.Surface treatment optional: Enamel coating.

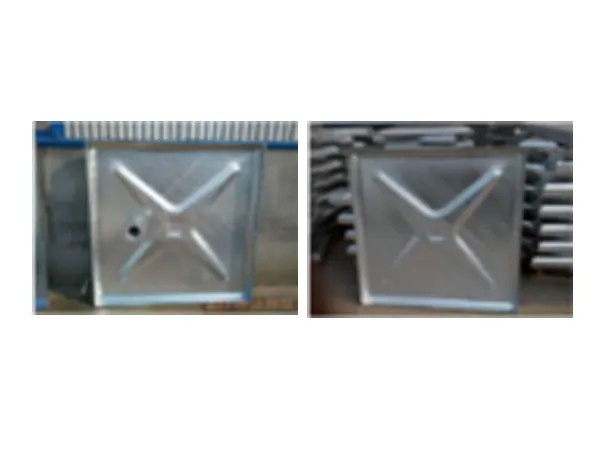

•SIZE & WEIGHT

1. The size of steel panels are produced by standard with 1.22*1.22m, 1*1 m, 1*0.5m and 0.5*0.5m;

2.The panel thickness is depends on tank height;

3.The maximum height available is 5 meters.

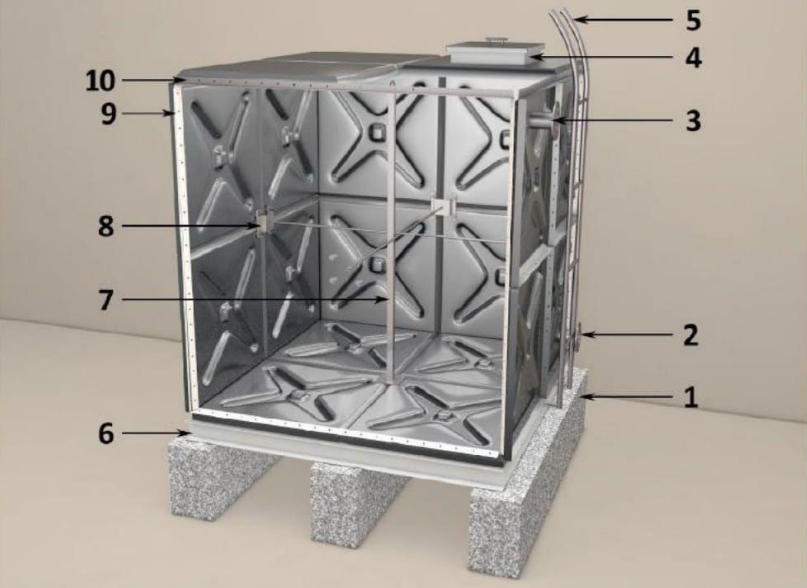

ACCESSORIES

1.Concrete beam 2.Outlet flange 3.lnlet flange 4.Manhole 5.External ladder 6.C-channel

7.Vertical support 8.Tie rod plate 9.Sealing rubber 10.Top angle bar

•BOLTS & NUTS

Hot dipped galvanized

•SEALING RUBBER

1.Food grade white color EPDM

2.Silicone

•FLANGES

Hot dipped galvanized

•INTERNAL STRUCTURE Hot dipped galvanized

•BASE FRAME

1.Painting

2.Hot dipped galvanized

•WATER INDICATOR

1.Glass with brass valve

2. Float type

ADVANTAGES

•ANTI-CORROSION

A hot dip galvanized water tank uses an approximately 70µm zinc layer to provide strong anti-corrosion capability.

•RELIABLE QUALITY

For a galvanized steel water tank, our panels comply with applicable quality requirements such as Singapore PSB, SGS and China QSB, and the service life can exceed 25 years under suitable conditions.

•DIMENSION FLEXIBILITY

The size of panel can be 1.22*1.22m, 1*1 m, 1*0.5m and 0.5*0.Sm, which can assemble kinds of volume from 0.125m³ to 5000m³. That's extremely convenient to select for you.

•CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided. Where lower weight and non-metallic panels are preferred, a grp sectional water tank provides an alternative modular configuration.

•DURABLE

The hot dipped galvanized pressed steel tank uses 1000T hydraulic-press integrated molding, with no welding seam at the panel corners.

•BURY UNDERGROUND

All the HUILI steel material water tank can be bury underground, the thickness of inner structure and panels are thicker than normal tank

Features of Hot-Dip Galvanized Water Tanks

01

ANTI-CORROSION
02

RELIABLE QUALITY
03

DIMENSION FLEXIBILITY
04

CONVENIENT INSTALLATION
05

DURABLE
06

BURY UNDERGROUND
